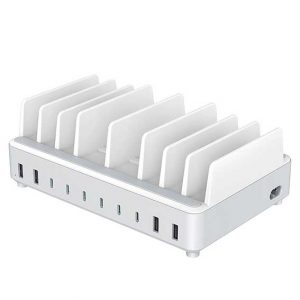

10-port charger 320W charging station GaN PD multi-port USB charging stand
Package includes components
1 charging station
1 power cord
1 user manual
Product weight and size
A: Product weight: 650
B: Weight with packaging: 750g
C: Product size: 200*130*78mm
D: Size with packaging: 22*14*9cm
Packing information
A: Number of outer boxes: 16/pcs
B: Outer box size: 38*45*29.5cm
C: Net weight: 12kg
D: Gross weight: 13kg
Usage steps
A: Plug in the power cord and connect the charger through the standard power cord 8-shaped interface.
B: The electronic design parameters such as voltage and current are fully in line with mobile phone standards and will not cause damage to your beloved machine.
C: Connecting the charging cable can power and charge various electronic products such as MP3/MP4, ipad, iphone and other mobile phones, small speakers, Bluetooth, PSP, notebooks, usw.
Application scenarios
1. High-end restaurants with popular iPad ordering systems
Ordering is easy, but charging is not! When a busy day is over, just put the exhausted iPad tablets into the charger and you can easily get it done!
2. Airport VIP lounge
When you are on a business trip, traveling, or waiting for a long time for entertainment or work, you don’t have to worry about charging!
3. Hotel lobby, business club, coffee shop
Such public places for leisure and entertainment are equipped with such a high-end charging device to solve the charging problem of customers.

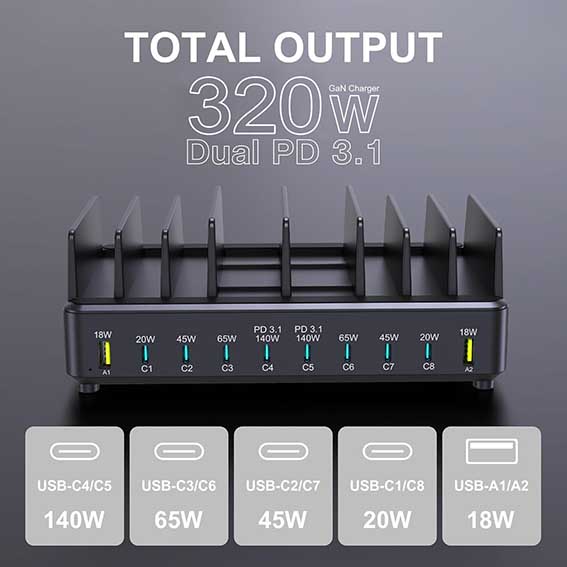

10 Port charging stations
Model: 027
Input: AC100-240V/50-60Hz
Output:
USB-A1: 5V/3A, 9V/2A, 12V/1.5A (18W Max)
USB-C1: 5V/3A, 9V/2.22A, 12V/1.67A (20W Max)
USB-A1+ USB-C1: 5V/3.8A (Eachport 2.4A)
USB-C2: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A (45W Max)
USB-C3: 5V/3A, 9V/3A, 12V/3A, 15V/3A ,20V/3.25A (65W Max)
USB-C4: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A (140W Max)
USB-C2+ USB-C3: 45W + 65W (110W Max)
USB-C3+ USB-C4: 65W + 87W (152W Max)
USB-C2+ USB-C4: 45W + 100W (145W Max)
USB-C2+ USB-C3+USB-C4: 30W +45W+ 65W (140W Max)
C2 C3 C4 interconnection power reduction
———————————————————————————————–
USB-C7: 5V/3A, 9V/3A ,12V/3A ,15V/3A ,20V/2.25A (45W Max)
USB-C6: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W Max)
USB-C5: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A (140W Max)
USB-C7+ USB-C6: 45W + 65W (110W Max)
USB-C6+ USB-C5: 65W + 87W (152W Max)
USB-C7+ USB-C5: 45W + 100W (145W Max)
USB-C7+ USB-C6+USB-C5: 30W +45W+ 65W (140W Max)
C5 C6 C7 interconnection power reduction
USB-C8: 5V/3A, 9V/2.22A, 12V/1.67A (20W Max)
USB-A2: 5V/3A, 9V/2A, 12V/1.5A (18W Max)
USB-C8+ USB-A2: 5V/3.8A (Eachport 2.4A)
TOTAL: 320W
Interface order: A1 C1 C2 C3 C4 / C5 C6 C7 C8 A
1. With brackets of different spacing, for devices with leather cases, they can be placed according to thickness
2. The middle high-size bracket can meet the needs of laptop computer protection, and the overall bearing mass can be greater than 10kg
3. Can charge 10 devices at the same time
4. All ports have protection functions
5. Using advanced power chip, with good physical heat dissipation inside, the full-load temperature is also very low
