자동차 배선 하네스의 기능 및 생산

나. Core functions of automotive wiring harnesses
‌Power distribution and energy transmission‌
Provide stable power support for automotive electrical appliances (such as headlights, 씌우다) to ensure the normal operation of electrical equipment;
The transmission current range covers 0.5-6.0mm² wires to meet different power requirements34.
‌Signal interaction and control‌
Transmit sensor data (such as speed, 온도) to the control unit to achieve real-time monitoring of vehicle status;
Realize multi-channel signal transmission through the CAN bus to reduce the complexity of traditional wiring harnesses48.
‌Networked connection‌
Build a neural network for the vehicle electrical system and connect the entire vehicle’s electronic equipment (instruments, central control, safety systems) in series;
Support the high-speed data transmission requirements of on-board intelligent systems (such as ADAS).

II. Automotive wiring harness production process
Wire cutting: Cut the wire according to the drawing, the accuracy must be controlled at ±0.5mm, and the stripping length error must be ≤0.3mm;
Crimp: Match the terminal and the wire cross-sectional area, and set the crimping force range (such as 200-300N for 0.5mm² wire crimping force);
Pre-installation: Assemble the wiring harness branches in sections (such as engine compartment wiring harness, instrument wiring harness), and use bellows/tape protection;
General assembly: Integrate the branch wiring harnesses and fix them with buckles/brackets to avoid interference with moving parts25
Test: Perform continuity test (resistance ≤5mΩ), withstand voltage test (AC 500V/1min without breakdown) and waterproof test (IP67 level);

III. Materials and technical requirements
Core materials
철사: tinned copper wire (conductivity ≥98%), aluminum-magnesium alloy wire (lightweight scenario); ‌절연층‌: high temperature resistant (-40℃~125℃) PVC/PE material, fluoroplastics are used in high frequency scenarios;
‌Connector‌: plug-in life ≥5,000 times, contact resistance ≤10mΩ (such as GH1.5/M12 series).
‌Technology trend‌
‌High voltage transmission‌: New energy vehicles use wires above 600V, with shielding layer to suppress electromagnetic interference;
‌Lightweight design‌: wire cross-sectional area optimization (such as aluminum instead of copper), integrated wiring harness layout7;
‌Automated production‌: laser welding replaces traditional soldering, with an accuracy of ±0.1mm and an efficiency increase of 30%.

IV. Typical application scenarios ‌Power system‌: The engine wiring harness needs to withstand high temperature vibration, and a metal wire box is used to fix the branch wiring harness;
‌Smart cockpit‌: The instrument panel wiring harness integrates CAN/LIN bus, supports multi-screen linkage and voice control;
‌Safety system‌: The seat belt pretensioner/airbag wiring harness needs to pass 100,000 bending tests to ensure the reliability of emergency triggering.

메모: During the design phase, wiring harness path planning (such as avoiding high-temperature exhaust pipes), EMC protection, and maintenance convenience must be considered simultaneously.

기능:
Power and Signal Transmission:
The wiring harness acts as a conduit, delivering electricity and signals from the battery to all electrical components, including the engine control unit (ECU), 센서, 액추에이터, and other systems.
System Coordination:
It ensures that different electrical systems work together seamlessly, enabling functions like steering, braking, 조명, and infotainment.
Organization and Protection:
The harness organizes individual wires into a single, manageable unit, simplifying wiring and protecting wires from damage and environmental factors.
Space Optimization:
It helps conserve space within the vehicle by bundling wires and routing them efficiently.
안전:
The harness plays a crucial role in ensuring vehicle safety by transmitting signals for critical functions like braking, steering, and airbag deployment.

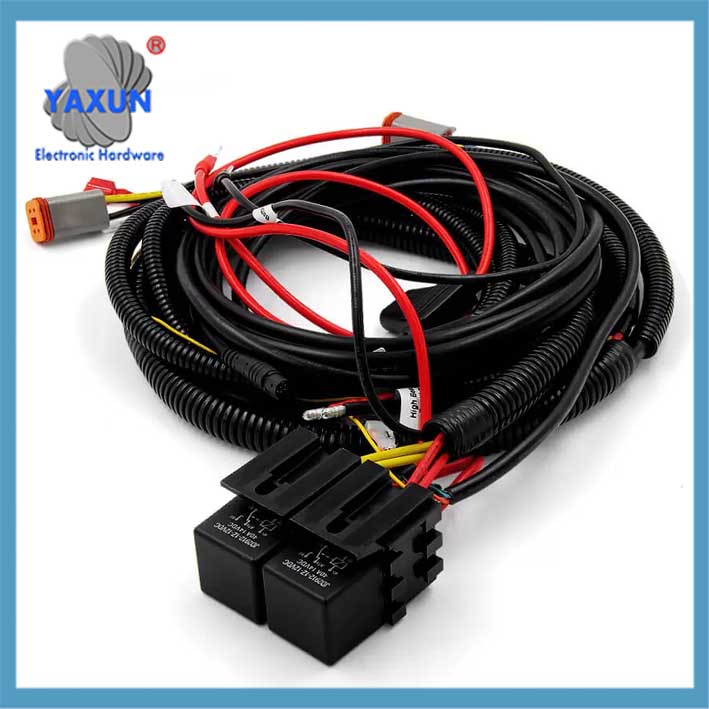

공장 맞춤형 자동차 방수 버스 하네스 어셈블리

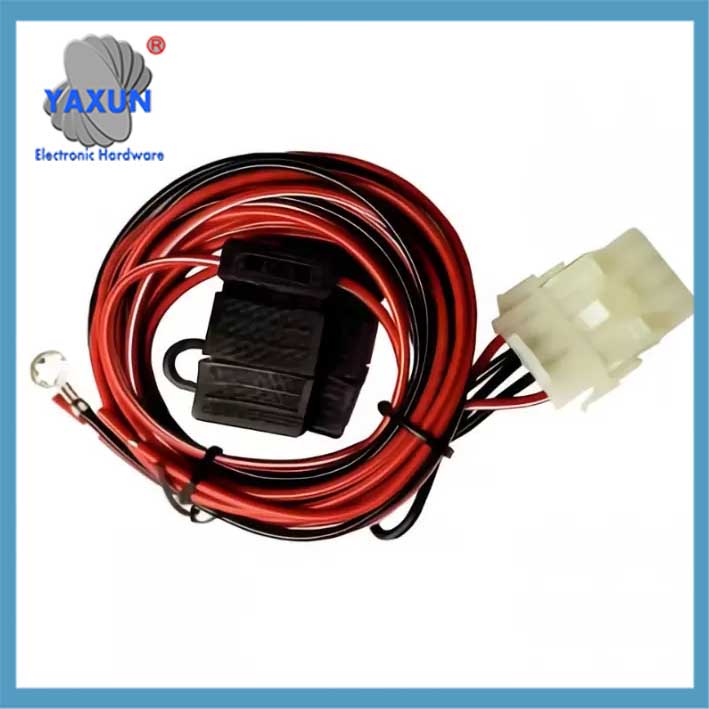

Automotive Power, LVDs, Flat RCA, USB cable harness

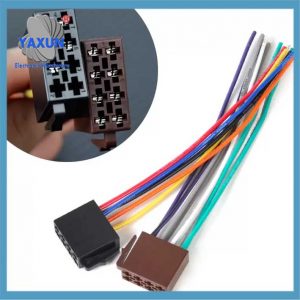

Automotive Audio, Video, Radio cable and iso wire harness

Production:
Design:
Wiring harnesses are typically designed for specific vehicle models and applications, considering factors like space constraints, wiring requirements, and safety standards.
프로토 타이핑:
Prototypes are created to test the design and ensure it meets the requirements.
Assembly:
Harnesses are assembled by carefully attaching wires to terminals and connectors, often using automated processes for tasks like cutting, 스트리핑, and crimping.
Testing:
Rigorous testing is performed to ensure the harness’s reliability, 내구성, and ability to withstand various conditions.
품질 관리:
Manufacturers adhere to quality standards like ISO/TS 16949 to ensure harnesses meet industry requirements.

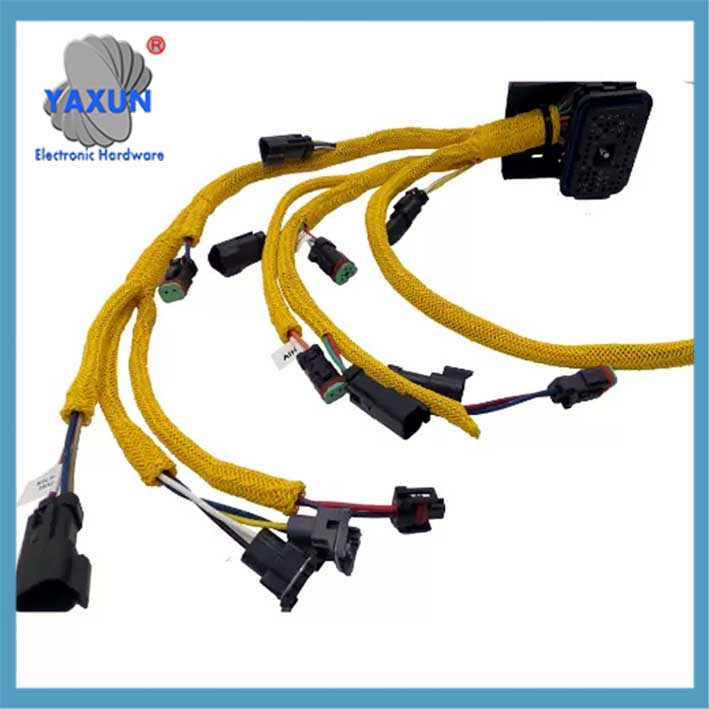

Automotive, 오토바이, Bus, Bike, Truck wire cable assembly

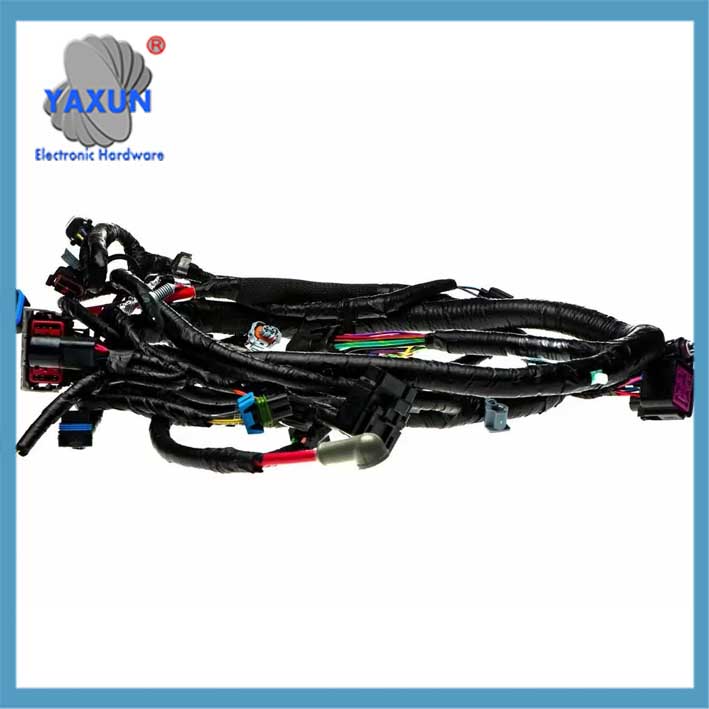

Diesel engine harness with 6.0L engine, without fuel heater

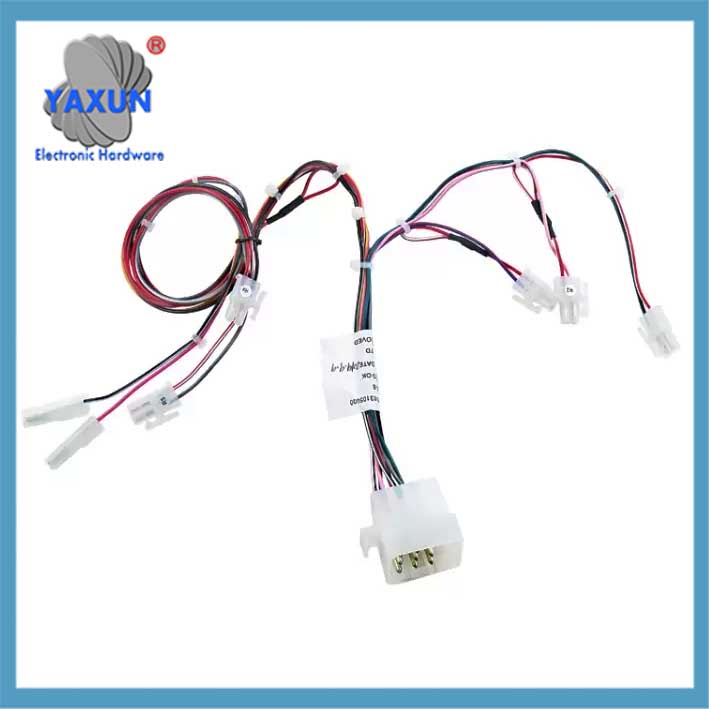

JST 커넥터 배선 UL 자동차 배선 하니스 조립 와이어 IATF16949
