高壓 2 電動汽車的引腳連接器插頭

The electric vehicle 2-pin connector plug is a simple connector for charging electric vehicles, usually containing two conductive pins for transmitting electrical energy. The electric vehicle high-voltage 2-pin connector plug is a connector used in the high-voltage system of electric vehicles, mainly used to connect the high-voltage components of electric vehicles to ensure the safe operation of the electrical system. This connector usually consists of a plug and a socket. After the plug is inserted into the socket, the circuit is connected or disconnected through electrical signals or mechanical force.

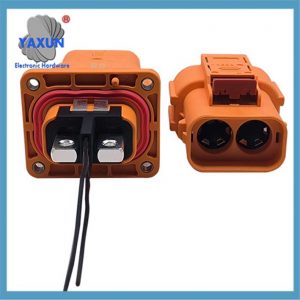

High-Voltage Connector Two-Core Small Current Straight Plug New Energy Electric Vehicle Male and Female

High Voltage Connector Hvil HV Connectors 2 Pin IP67 Metal Amphenol Hvsl Battery Plug Wire Cable Automotive for EV

China High Voltage Current Connectors Plug Socket New Energy Electric Vehicle Car Hv Connector Manufacturer and Supplier

Its main features are as follows:
Main features
Simple structure: usually composed of two metal pins and an insulating shell.
Use: Suitable for low-power charging scenarios such as home charging piles or portable charging devices.
Compatibility: Common in old or low-power electric vehicles.

優勢
Low cost: Low manufacturing and maintenance costs.
Portable: Small size, easy to carry and install.

缺點
Slow charging speed: Only suitable for low-power charging, slow speed.
Limited functions: Does not support data transmission or advanced functions.

Application scenarios
Home charging: Suitable for low-power charging at home or private garage.
Portable charging: used for portable charging devices, suitable for temporary or emergency charging.

Precautions
Safety: ensure that the connector meets safety standards to avoid overheating or short circuit.
Compatibility: confirm that it matches the vehicle charging interface.

Summary
The 2-pin connector plug is suitable for low-power charging, with the advantages of low cost and portability, but the charging speed is slow and the function is limited.

Structure and function
The high-voltage connector plug usually contains two pins for transmitting high-voltage power signals. Its internal structure includes a high-voltage connector and a low-voltage connector, which are fixed on the socket and the plug respectively. This design not only ensures the electrical integrity of the high-voltage system, but also forms a closed loop through the low-voltage wiring harness to monitor the status of the high-voltage system and prevent electrical failures and safety hazards.

Application scenarios
The high-voltage 2-pin connector plug of electric vehicles is widely used in the high-voltage system of electric vehicles, such as battery management systems, motor controllers, DC/DC converters and other key components. Through this connector, electric vehicles can achieve efficient power transmission and control, ensuring the normal operation and safety protection of various components.

汽車高壓連接器功能:
HV互鎖連接器, 插頭, 2-別針, 直的, 塑膠, 150一個;
多個關鍵選擇以防止誤解;
IP67密封和防水, 抗電擊;
高質量的原始工廠裝運, 30 天無憂的回報和交流;
品牌OEM工廠的批發, 質量相同, 更實惠的價格.

汽車高壓連接器應用:
高壓分配箱
電機控制器
發動機
空調
PTC
電池

PDU Hvsl Cable Connector Electric Vehicle Hvil EV High Voltage 2pin 200A 250A Plug and Socket for 70mm2 ~ 50mm2 Cable

Electric New Energy Vehicle Plug 2pin 50A High Voltage Connector Plastic Electric Vehicle Connector

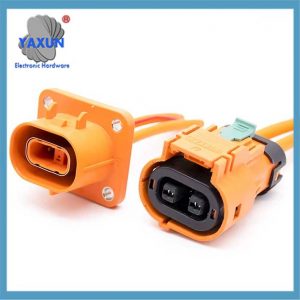

OEM HV Connector 2 Pin 2pin 23A Used for DC-DC Electric Car HVIL23-2P EV Connector Cable DC Press Type Conector Automotriz

汽車高壓連接器的參數:
額定電壓: 960V AC/1000V DC
額定電流: 16一個, 35一個, 50一個, 125一個, 150一個, 200一個, 250一個, 400一個, 500一個
承受電壓: 3000v和
絕緣抗性: ≥500MΩ
電纜規格: 2.5-150m㎡
連接類型: 終端機
插頭和拔下插頭的數量: >100
盾: 360
IP等級: IP67 IP6K9K(交配)
工作溫度: -40〜〜125℃
鹽噴霧測試: 最大96H
易燃性等級: UL94 v-0
休息：內部散佈
引腳數: 1/2/3別針

材料
殼: PA66, 鋅合金
接觸電鍍: 銅合金, 鍍銀
包裝: 橡皮

汽車高壓連接器電線:
當前的: 電量表
從16a到23a最大：2.5-4m㎡
從16a到35a最大：2.5-6m㎡
從16a到50a最大：2.5-10m㎡
125最大：25m㎡
150最大：16-35mm㎡
200最大：25-50mm㎡
250最大：50-70mm㎡
400最大：95-120mm㎡
500最大：120-150mm㎡
